Our excavators are ideal for use in tight spaces and applications such as general and residential construction, landscaping, orchard and utility work.
Compact Dimensions:
With an overall width of only 860 mm (33 in), can easily drive through narrow space.
Powerful Engine and Hydraulics:
Changchai engine or BRIGGS&STRATTON engine
The 8.2 kW engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful hammer.
Hose and Cylinder Protection:
Bucket hoses are well protected within the boom and the cylinder is mounted above the structure to increase the machines durability for working in tough environments.
Simple Controls:
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice.
mini excavator prices
| Model | HT10 |
| Weight | 960kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Bucket width | 380mm |
| Engine | CHANGCHAI (KD192) |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 8.2 kw/3000r/min |
| Displacement | 0.211 L |
| Bore stroke | 70x55 |
| Main pump | CBK-F6.8 |
| Displacement | 6.8ml/r |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KERSEN(OMS-2450) |
| Travel speed | 1.5km/h |
| MAIN DEMENSIONS |
| Overall dimension( LxWxH) | 2770x896x1490 mm |
| Wheelbase | 910 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| OPERATING RANGE |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |

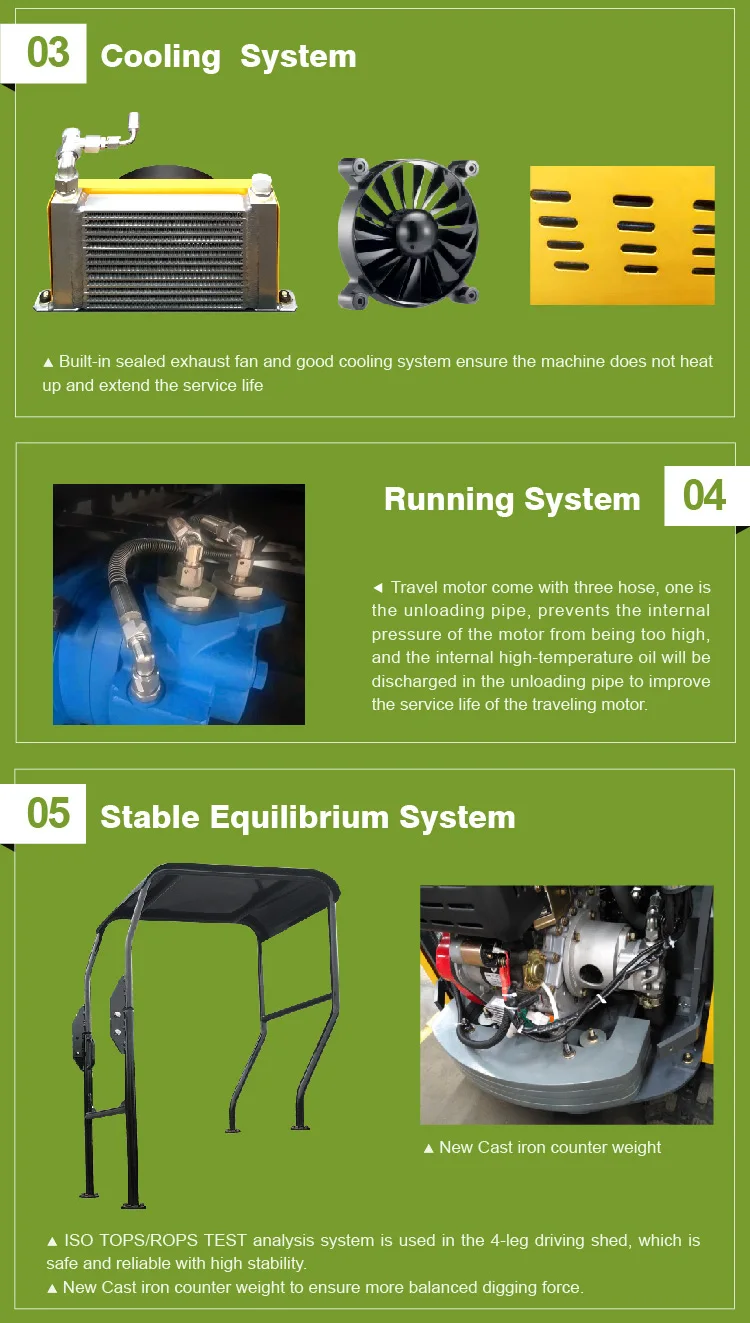

Details of mini excavator :
Excavator accessories:
About us:
Jining China Machinery Co. ,Ltd, established in 1980, is an important and a large construction engineering equipment joint-stock enterprise Group in China, It has several wholly-owned subsidiaries, company headquarters is located at National High-tech Zone, Shandong province.
We have CE Certificate,SGS Product Certificate, ISO9000 Quality Control Certificate and BV Supplier Certificate, Our machine had win much good reputation through its quality and nice performance.
Nowadays Our products have been exported to 127 countries and regions over the world.
Our Advantages
PROFESSIONAL
We take thoughtful, professional sales service as the purpose, is committed to providing products beyond customer expectations.
COMPETITIVENESS
Our company has sufficient resources and capabilities, in order to control the cost price advantage and provide excellent products and service.
GOOD SERVICE
With ten-years enperience in manufacturing and marketing. All of our products are greaty appreciated.
|
|
Chinese mini digging machine ce excavator with 0.0025m³ scoop Images
|
